Okna DA-45
Go back to Aluminum Windows

Aluminum windows: DA-45 range

Proven internal system

The way to stable

internal partitions

Modern solution

for public buildings

Functionality and design

best quality

Sound-proofing

high quality

Send an inquiry

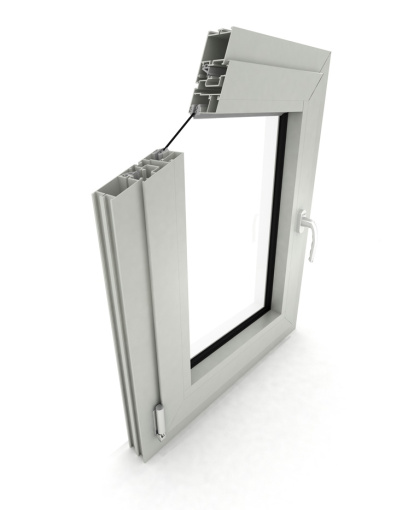

Okna z serii DA-45
Generate PDF file
Uw*

6.1 W/m2K

Installation depth

Frame 45mm, Leaf 54mm

Hinges

Surface-mounted

Handle model

1006

Anti-theft hooks

yes

Glazing packet

Float 4 mm

Full specification
Important safety information.pdf
397.84 kB
Download

DA-45 range aluminum windows system

Functional system used to construct internal glazing, partitions and windows.

Ideal for creating interior space divisions in public buildings and commercial facilities.

Aluminum window colors

The full range of RAL colors is available in a sample list.

Basic colors

RAL 9016 White
RAL 9006
RAL 8019
RAL palette color

The colors presented are just a visualization and may be different from the actual colors.

Additional accessories

Handles

Handles

Details
Glass panes

Glass panes

Details
Pane bars and decorative lists

Pane bars and decorative lists

Details
Fittings

Fittings

Details
Opening sensors

Opening sensors

Details
Air vents

Air vents

Details
Need an estimate?

Send an inquiry
Inspirations

Discover our products featured in past projects

DA-45

Thermal efficiency
Uw*
6,10* W/m2K
U factor*
1,07* Btu/h·ft²·F
*
Results for reference windows size: 48 7/16in x 58 4/16in (1230 x 1480 mm) with basic glass
Profile
Profile name
DA-45
Installation depth
Frame: 54 mm | Sash: 45 mm
Number of chambers
1
Thermal break
none
Number of seals
Two EPDM dual-component synthetic rubber seals
Glass
Glazing package
Float 4 mm
Ug value
5,8 W/m2K
Glazing Package Thickness
Glazing thickness available from 4 to 34 mm
Sound insulation of available glazing
Rw: from 31 to 42 dB
Fittings
Type
---
Hinges
surface
Anti-theft protection
anti-theft catches
Microcventilation
yes
Other
Four-stage tilt and slide mechanism | Handle rotation lock with a lifter
Handle
Colors
---
Handle model
1006
Dimensions
Maximum window width – single sash
1600 mm
Maximum window height – single sash
2400 mm
Maximum window width - double sash with a movable post
3000 mm
Maximum window height – double sash with a movable post
2400 mm
Maximum sash area
3 m2
Maximum size of fixed glazing (when using a special glass, Maximum area of 7m2 and weight of 250 kg)
3500 x 2900 mm or 2900 x 3500 mm
DA-70N
View product

DA-70N

An economical solution available in multiple variants: traditionally inward-opening, outward-opening, or with a concealed sash option.

DA-77
View product

DA-77

Great possibilities in three system variants: standard (also in the corner option), with hidden sash and fire protection

DA-FerroLine
View product

DA-FerroLine

Broad possibilities of narrow window profiles in aluminum windows.
